Block udp ports in cisco 2811 router

4.0

Author:
IMFirewall Software
HomePage:
http://www.imfirewall.us

This tutorial will guide you to block udp ports 1024-65534 in a cisco 2811 router.

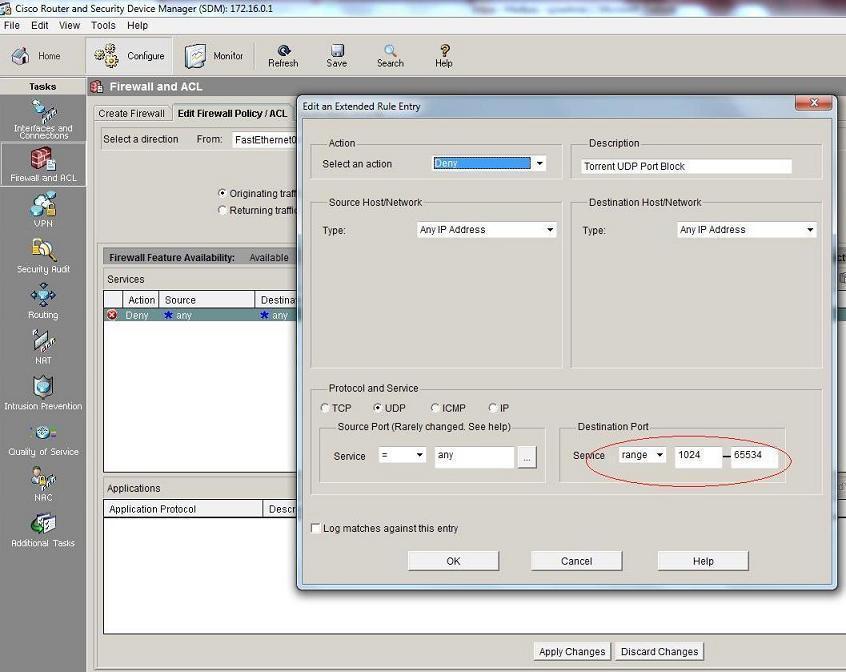

As in figure 1, add an ACL rule in "Firewall and ACL", and set the destination port to range "1024-65534".



Figure 1

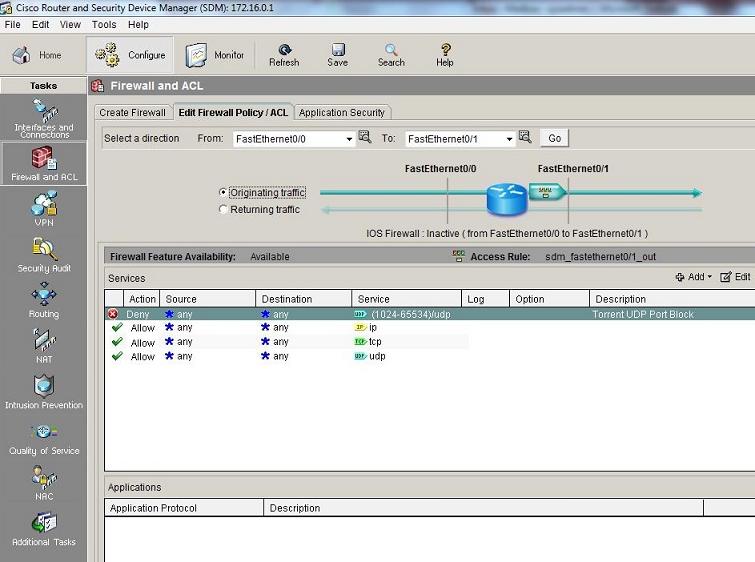

If a packet does not match any ACL rule, the default action is "deny". So you also need to add "allow" rules for all other packets.



Figure 2
