Figure 1

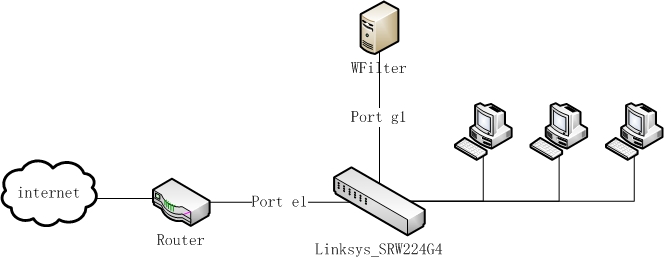

A company network is connected by a linksys srw224G4 switch, the network topology diagram:

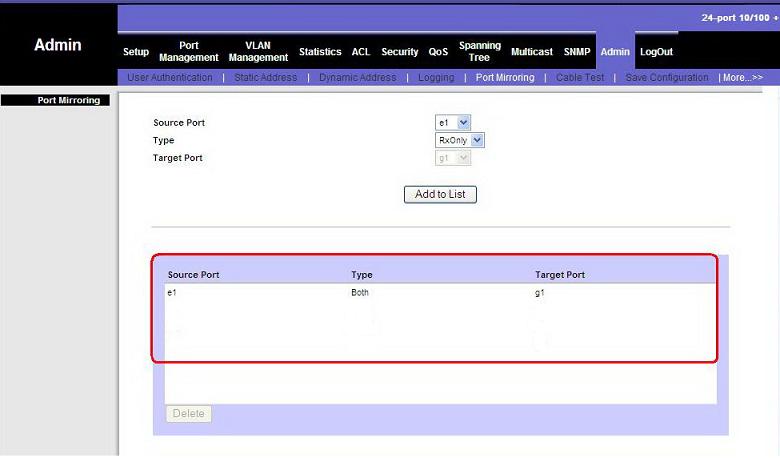

In this network, we only need to do port mirroring in the linksys srw224G4 switch to do monitoring and filtering. The below diagram shows the mirroring settings of the linksys switch:
As in the diagram above, port "e1" is connected to the internet router and port "g1" is connected to the WFilter computer.
To check whether port mirroring is properly configured, please check: How to check whether port mirroring is properly configured?
For more WFilter deployment examples, please check: WFilter Deployment Examples.
